| Product Name | |
| Product Number | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
| Specifications | Cont./Peak Current Input BEC Output |
| Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
| ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
| Fan | Size Voltage Range Powered by |
| Firmware | Firmware Upgrade |
| Size & Weight | Size Weight |
| Applications | Motors Vehicles KV Rating/T Count |

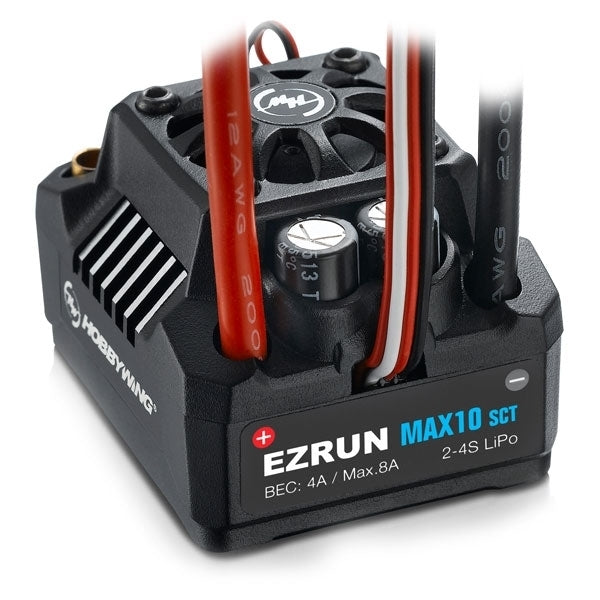

| Product Name | EzRun MAX10 SCT | |
| Product Number | 30102601 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/10th BL SL Yes |
| Specifications | Cont./Peak Current Input BEC Output |
120A/830A 2-4S LiPo/6-12 Cells NiMH Switch Mode:6V/7.4V,4A |
| Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-12AWG-200mm*1/Black-12AWG-200mm*1 Black-12AWG-200mm*3 No 4.0 Bullet Connectors (Female) |
| ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Supported Supported Supported Supported Supported FAN/Program Port |
| Fan | Size Voltage Range Powered by |
25.0x25.0x10.0mm 5-7.4V Powered by BEC |
| Firmware | Firmware Upgrade | Supported |
| Size & Weight | Size Weight |
49.0x39.5x34.7mm 105g |
| Applications | Motors Vehicles KV Rating/T Count |
SL BL Motors/SD BL Motors(only in SL mode) 1/10th SCTs/Truck/Monster Truck 2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors) |
