| Product Name | |
| Product Number | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
| Wires & Connectors | Input Wires Output Connectors Input Connectors Output Connecotors |
| Fan | Type Size Voltage Range Powered by |
| ESC Programing via | SET Button on ESC LED Program Box LCD G2 Program Box (STOPPED) LCD Pro OTA Programmer WiFi Module (STOPPED) Program Port |
| Firmware | Firmware Upgrade |
| Size & Weight | Size Weight |
| Applications | Motors Vehicles KV Rating/T Count |

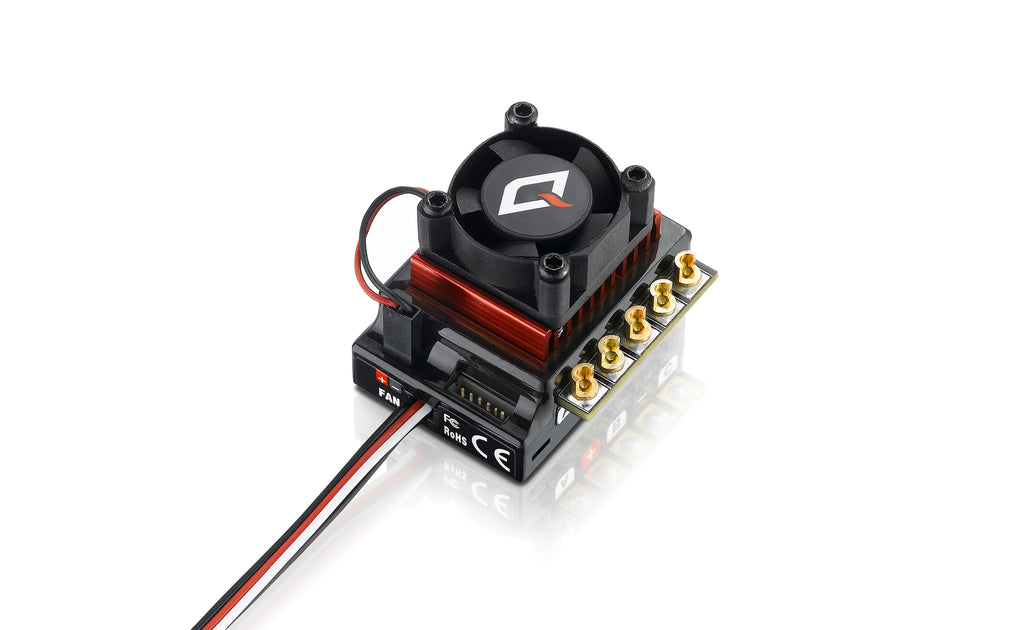

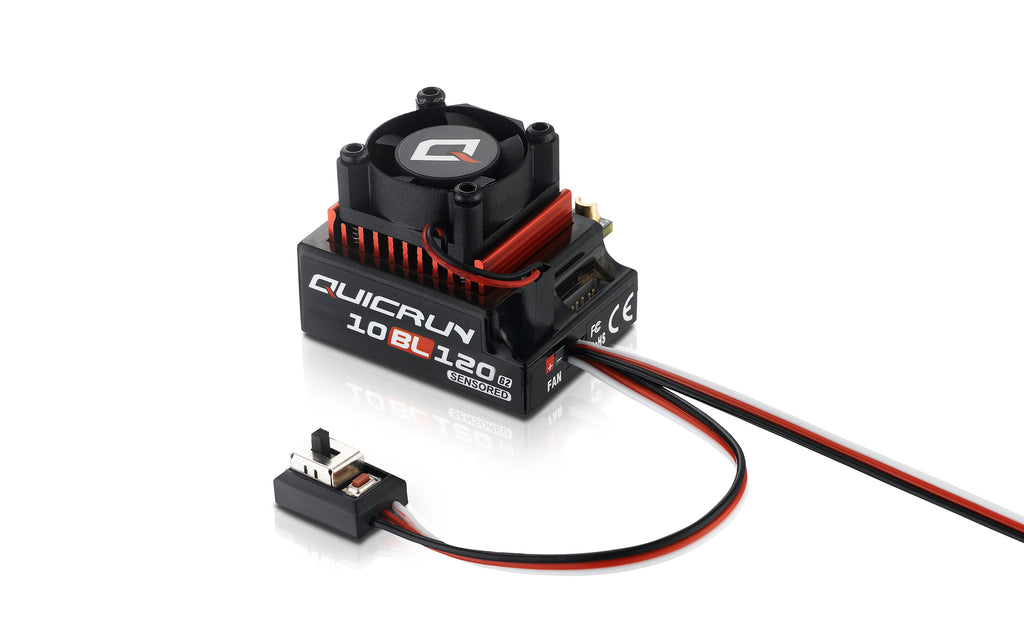

| Product Name | QuicRun 10BL120 Sensored G2 | |
| Product Number | 30125002 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/10th BL SD No |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
120A/760A 2-3S Lipo Switch Mode 6V/7.4V @4A |
| Wires & Connectors | Input Wires Output Connectors Input Connectors Output Connecotors |
Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1 Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1 No No |
| Fan | Type Size Voltage Range Powered by |
Framed 25x25x10mm 5-8.4V Powered by BEC |
| ESC Programing via | SET Button on ESC LED Program Box LCD G2 Program Box (STOPPED) LCD Pro OTA Programmer WiFi Module (STOPPED) Program Port |
Supported Supported Supported Supported Not Supported Not Supported Separate Program Port |
| Firmware | Firmware Upgrade | Not Supported |
| Size & Weight | Size Weight |
43*36.8*32.3mm 101.5g (Included wires&connectors) |
| Applications | Motors Vehicles KV Rating/T Count |
Sensorless / Sensored Brushless Motor 1/10th Touring Cars/Buggies/Drift Cars 2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor |
