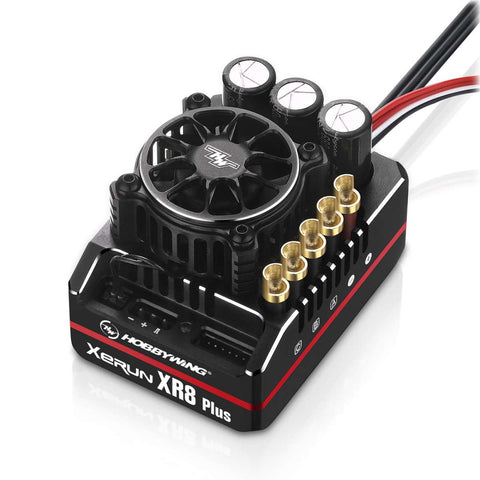

Hobbywing Xerun XR8 Plus G2S 200A 1/8 Competition Electronic speed controller

  • Sale
  • Regular price R 3,999.00
Tax included. Shipping calculated at checkout.


Product information "Hobbywing Xerun XR8 Plus G2S Brushless ESC 200A, 2-6s LiPo"

The XR8 Plus G2S ESC is the next development of a 1/8 ESC series with 6 RPM limit profiles. An efficient system for heat regulation ensures less heat development than with other controllers, because thanks to the strong airflow on the sides of the fan and the copper heat sink inside, the XR8 is optimally protected. This is also urgently needed in some heat-up races.

Designed for the use with 2-6S LiPos batteries, the ultra-soft cable routing made of 11AWG cables, the specially designed solder tags and the elegant appearance are examples of the high-quality workmanship. In terms of functionality, the XR8 Plus G2S shines with an extended BEC of 6-8.4V in 0.1 steps, because a wide range of servos can be addressed. The capacitor also brings security and protection. And those who value performance measurement themselves definitely want to check out the corresponding smartphone app. If the XR8 ESC is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed in live-mode.

Features:

  • 5 selectable profiles for all 1/8 RC car races
    • Zero-timing blinky mode
    • 1/8 offroad racing
    • 1/8 onroad racing
    • 1/8 GT Racing
    • 1/8 sport mode
  • Up to 30 different parameters can be set
  • Including 48° boost and turbo timing
  • Variable frequency control of the PWM and braking frequencies
  • Softening function for milder or wilder driving control and better driving efficiency
  • Various protective functions against
    • Polarity reversal
    • Overheating
    • Undervoltage shutdown
    • Loss of signal
  • Data logging of temperature, speed and much more
  • Firmware upgrades possible

Technical Specifications:

Type: Sensored/Sensorless Brushless Motor
Current (cont./peak): 200A / 1080A
Input Voltage: 2-6S LiPo
BEC:
6V - 8.4V
Strom (cont./peak): 6A/15A (Switch Mode)
Motor-Types: 4S LiPo: kV <3000 - 4268/4274 Motor
6S LiPo: kV <2400 - 4274 Motor
Fan: Yes, powered by BEC
Programming: - LCD Programming Box
- OTA Programming Module
Size: 56.1x42.1x38.5mm
Weight: 122g (w/o cables)
Applications: 1/8 On-Road/Off-Road/Truggy Racing


Accessories (optional):

HW30502001 LCD Programming Box
HW30850400 OTA Programming Module
