TRX-4 Technology and Innovation-Now Available as a Kit!

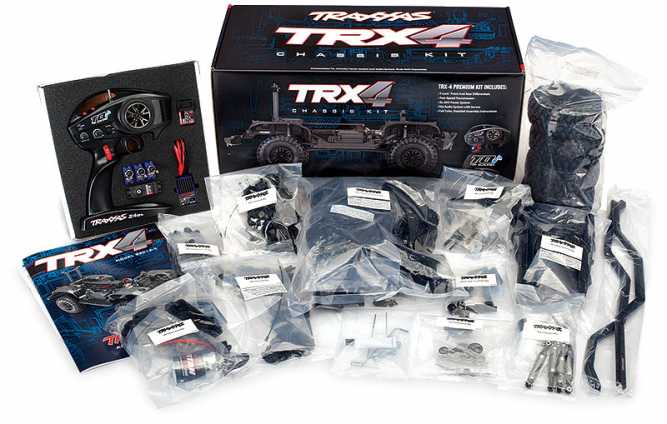

What's included in the kit:
- Unassembled TRX-4 Chassis Kit
- TQi™ 2.4GHz 4-channel radio system with 4 servos
- XL-5 HV waterproof ESC
- Titan® 21T 550 motor
- Full-color step-by-step assembly manual
What you'll need:
- TRX-4 compatible body (312 mm)
- 4 AA alkaline batteries
- Battery with Traxxas High-Current Connector
- 6 or 7 cell NiMH battery pack
- 2s or 3s LiPo battery pack
- Battery charger
- Metric hex drivers
- 1.5 mm, 2.0 mm, 2.5 mm
- Basic hand tools
- screwdrivers, needle nose pliers
- Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
- Safety glasses
Features:
- Easy to follow full-color assembly manual
- True-to-scale part illustrations and ruler charts
- Helpful assembly tips and clear illustrations
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Powerful Titan™ 21T reverse rotation motor
- Internal cooling fan
- Precise, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance (3.14”)
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartments
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary battery mount over front axle for forward weight bias
- Two speed high/low range transmission with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Pre-assembled heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Pre-assembled aluminum GTS Shocks
- Coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Shock oil included in kit
- Wheels and Tires
- 1.9” Canyon Trail tires with trail-tuned foam inserts
- Tough black scale wheels
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Tire glue required
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
